Applications:

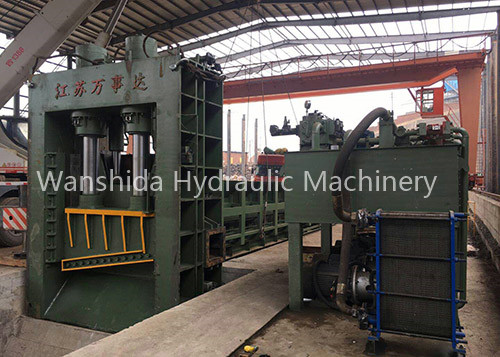

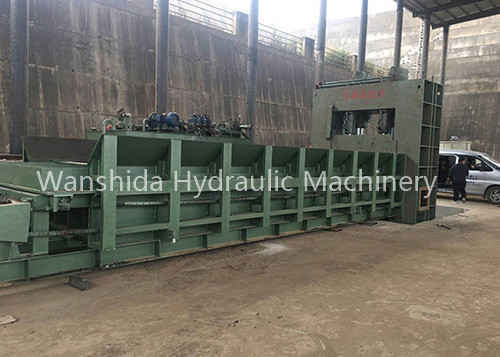

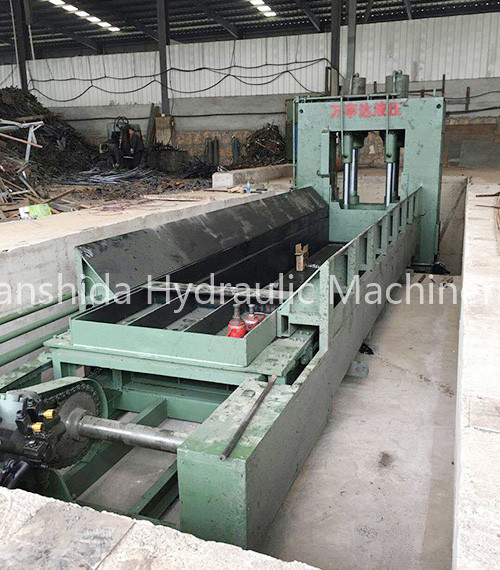

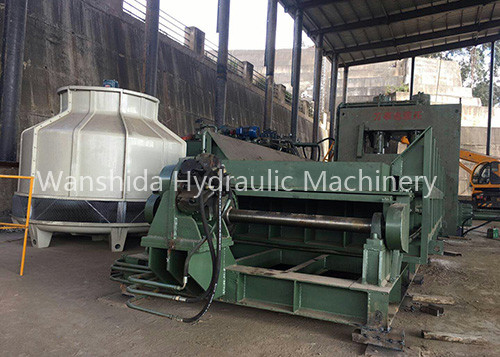

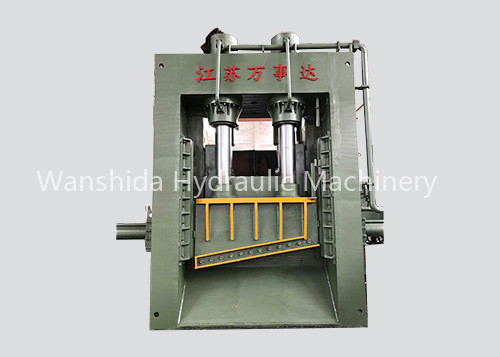

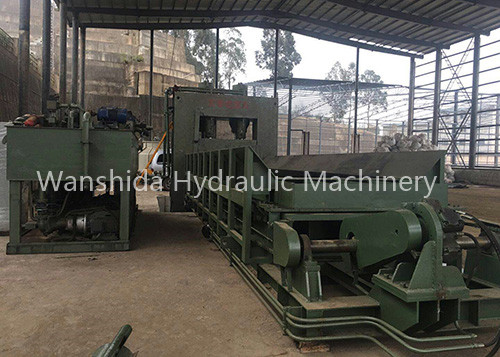

The heavy steel gantry shears are mainly used for cutting large steel scrap, processing various plates into various materials.Suitable for scrap metal profiles of various shapes (such as section steel, round steel, Angle steel, channel steel, billet, i-beam steel, steel plate, steel pipe, scrap steel bar, aluminum profile, aluminum plate).
This equipment adopts hydraulic transmission, higher efficiency than mechanical shearing machine, PLC control, easy operation and labor saving.
| No. | Model | Chamber size | Cutting Frequency | Power | Operation |
|---|---|---|---|---|---|
| 1 | Q43L-3150A | 5000×1600×1100mm | 3-5 times/min | 45kW×2 | PLC control（remote control） |
| 2 | Q43L-4000A | 4500×900×1100mm | 3-5 times/min | 37kW×3 | PLC control（remote control） |
| 3 | Q43L-4000B | 6000×1300×700mm | 2-3 times/min | 45kW×2 | PLC control |
| 4 | Q43L-5000A | 6000×1300×750mm | 2-3 times/min | 45kW×3 | PLC control |
| 5 | Q43L-5000B | 6000×1400×800mm | 2-3 times/min | 55kW×3 | PLC control |
| 6 | Q43L-6300 | 7000×1800×900mm | 2-3 times/min | 45kW×5 | PLC control |
| 7 | Q43L-8000 | 8000×2000×900mm | 2-3 times/min | 45kW×6 | PLC control |
| 8 | Q43L-10000 | 8000×2000×1100mm | 2-3 times/min | 45kW×8 | PLC control |
| 9 | Q43L-12500 | 8000×2000×1100（1400）mm | 3 times/min | 75kW×6 | PLC control |
